    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    Ask Lasest Price
    Brand Name : GENFOR
    Model Number : GFA174-2.5 B3
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs per month
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    1.Cast aluminum shell

    2.Easy to install with many kinds of machine,such as gasoline/diesel engine

    3.100% copper wire,and cold-rolled silicon steel

    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting


    Single-Phase with Eur socket.(socket as request)


    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    Double Bearing type with Socket

    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    Taper shaft type


    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    Single/Three-Phase with Lead output



    2.5KW Double Bearing 2-Poles High Output Alternator Selft-Exciting

    Insulation Class:CL.F(△T≦130K)

    Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

    Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,

    DC Output:12V/8.3A(Optional)

    Excitation Type:Brushless

    TECHNICAL DATE
    Brushless revolving filed,selft-exciting,2-poles,single phase
    Condenser compensating system
    TypeRated PowerMax PowerEfficiency
    ɳ(%)
    CosФ=1

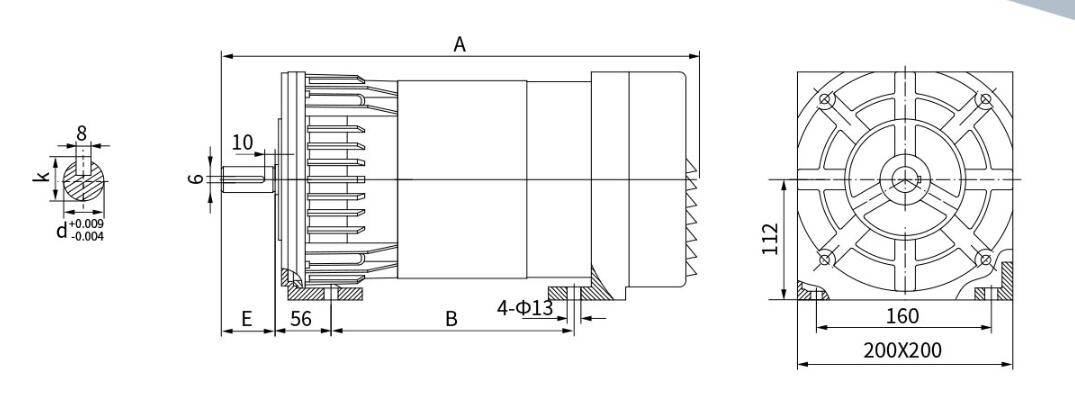

    MASS B3 (kg)Overall&Mounting Dimensions (mm)
    ABEKD
    GFA174-2.0 B350Hz-3000r.p.m2.02.371±220.0369.0139.050.027.024.0
    60Hz-3600r.p.m2.52.8
    GFA174-2.5 B350Hz-3000r.p.m2.52.873±221.5384.0154.050.027.024.0
    60Hz-3600r.p.m3.03.5
    GFA174-3.0 B350Hz-3000r.p.m3.03.375±222.5394.0164.050.027.024.0
    60Hz-3600r.p.m3.54.0
    GFA174-3.5 B350Hz-3000r.p.m3.54.077±224.0414.0184.050.027.024.0
    60Hz-3600r.p.m4.04.5
    GFA174-4.0 B350Hz-3000r.p.m4.04.581±228.0454.0214.060.031.028.0
    60Hz-3600r.p.m5.05.5
    GFA174-5.0 B350Hz-3000r.p.m5.05.583±229.0464.0224.060.031.028.0
    60Hz-3600r.p.m5.56.5
    Note:The data for your information only ,and changes based on practicality

    Package.

    We have different original packages for selling in different counties.
    we also can custom the packages as you want..

    We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

    Delivery.

    Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    We will recommend the most suitable shipping method for you.
