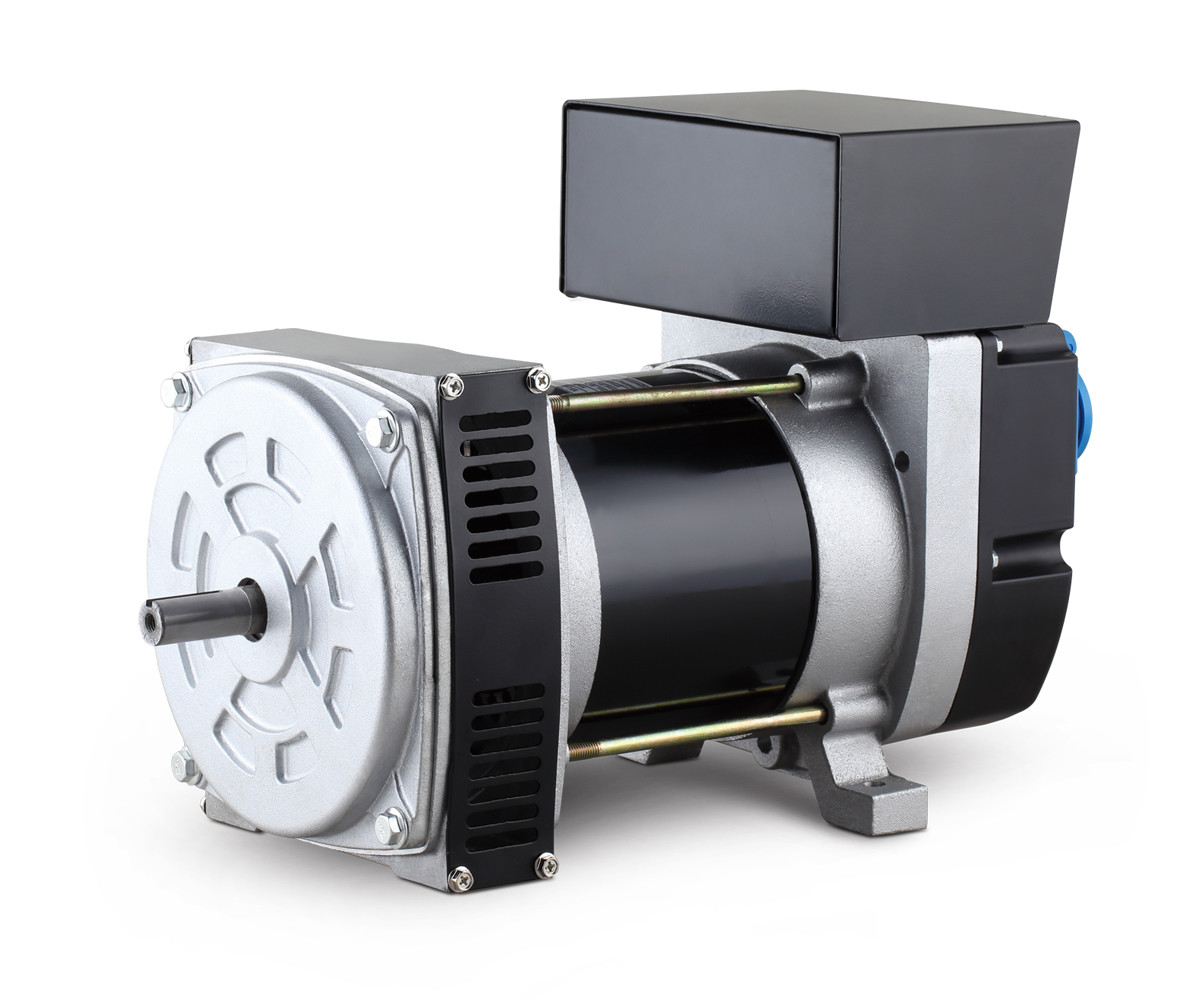

AC Brush Selft-Exciting Alternator High Output Alternator DC8.0A
12V
Model tyep: GFA09-2.0
Standy Power: 2.2KW
Rated Power: 2.0KW
Shaft Type: Taper Shaft 1:5/1:5.333
1. Cast aluminum shell
2. Easy to install with many kinds of machine,such as
gasoline/diesel engine
3. 100% copper wire,and cold-rolled silicon steel
Single-Phase with Eur socket.(socket as request)
|
Double Bearing type with Socket |
Taper shaft type |
Single/Three-Phase with Control Panel
|
Insulation Class:CL.F(△T≦130K)
Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)
Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,
DC Output:12V/8.3A(Optional)
Excitation Type:Brush and Brushless
TECHNICAL DATE |

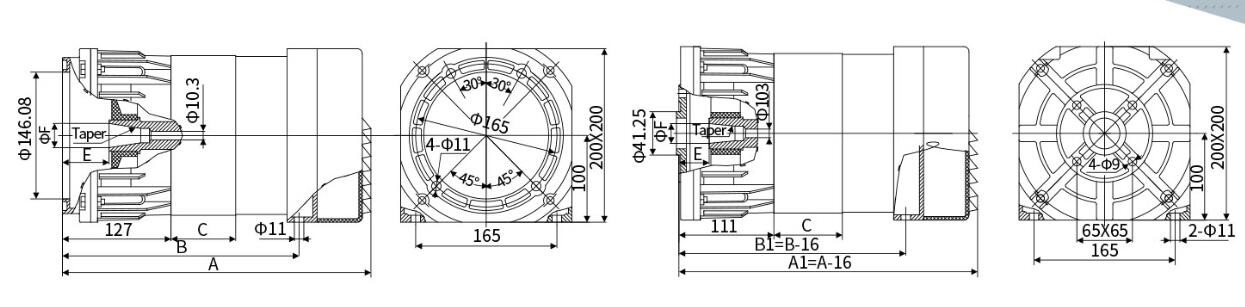

Type | Rated Power (KVA) | Max Power (KVA) | Overall&Mounting Dimensions(mm) |
A | B | C | E | ΦF | Taper |
GFA09-1.0 | 50Hz-3000r.p.m | 1.0 | 1.1 | 324 | 143 | 60 | 23/ 52.3 | 17/ 19.05 | 1:5/ 1:5.333 |
60Hz-3600r.p.m | 1.2 | 1.3 |
GFA09-1.5 | 50Hz-3000r.p.m | 1.5 | 1.7 | 334 | 153 | 70 |
60Hz-3600r.p.m | 1.8 | 2.0 |
GFA09-2.0 | 50Hz-3000r.p.m | 2.0 | 2.2 | 349 | 168 | 85 |
60Hz-3600r.p.m | 2.2 | 2.5 |
GFA09-2.5 | 50Hz-3000r.p.m | 2.5 | 2.8 | 374 | 193 | 110 |
60Hz-3600r.p.m | 2.8 | 3.0 |
GFA09-3.0 | 50Hz-3000r.p.m | 3.0 | 3.2 | 384 | 203 | 120 |
60Hz-3600r.p.m | 3.2 | 3.3 |
GFA09-3.5 | 50Hz-3000r.p.m | 3.5 | 3.8 | 394 | 213 | 130 |
60Hz-3600r.p.m | 3.8 | 4.0 |
Note:The data for your information only ,and changes based on
practicality |
Packing
We have different original packages for selling in different
counties. Package.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged
and safely reach your hands.
Delivery.
Generally, it will take 15 to 20 working days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
We will recommend the most suitable shipping method for you.
