    DC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max Output

    Ask Lasest Price
    Brand Name : GENFOR
    Model Number : GFW10-130AG
    Certification : CE
    Price : 50USD~459.00USD
    Payment Terms : L/C, T/T
    Supply Ability : 1000sets per month
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

    DC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max Output

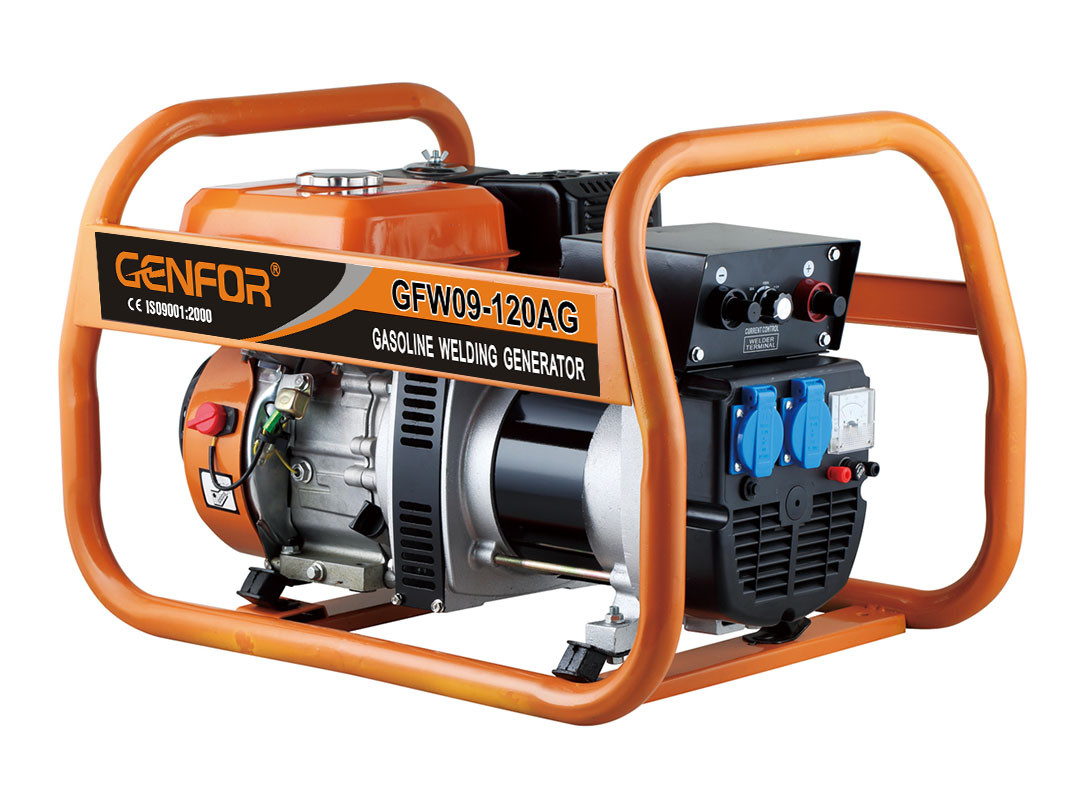

    130A Welding 4-Stroke Gasoline Portable Welder Generator DC Welding set


    Advantage

    1. 100% Standard power output

    2. Easy to operate and move

    3. 100% copper wire, and cold-rolled silicon steel


    DC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max OutputDC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max Output

    DC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max OutputDC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max Output


    Package

    We have different original packages for selling in different counties.
    we also can custom the packages as you want..

    We have strict packaging to ensure that the goods are not damaged and safely reach your hands.


    Delivery

    Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    We will recommend the most suitable shipping method for you.


    Technical Date


    Model 型号

    GF10W-130AG(E)

    GF10W-130AGB(E)

    Rated Welding Current(A)额定电焊电流

    130

    130

    Welding voltage(DC)(v)电焊电压

    19-26

    19-26

    Welding current range(A)电焊电流范围

    30-130A

    30-130A

    Applicable ElectrodeΦ(mm)适用焊条

    1.5-3.2

    1.5-3.2

    Duty Cycle电焊持续率

    60%

    60%

    Phase相数

    Single Phase 单相

    Single Phase 单相

    AC Frequency(Hz) 频率

    3000/3600/50 or 60Hz

    3000/3600/50 or 60Hz

    Rated Output (KW) 额定输出功率(KW)

    2.8KW

    2.8KW

    Rated Output Voltage(V)额定电压

    110;120;110/220;120/240;220;230;220/380;230/400;240/415

    Power Factor功率因素

    1

    1

    Engine Model发动机型号

    GF170FB

    GF170FB

    Max. Outpput (HP)发动机最大功率

    8.0

    8.0

    Displacement (cc) 排量(cc))

    223

    223

    Type 发动机类型

    Single-cylinder,4-stroke,Air cooled,OHV 单缸,四冲程,风冷引擎,OHV

    Compression ratio 压缩比

    8.3:1

    8.3:1

    Starting System启动方式

    Rical/Electric 手动/电动

    Lubrication Systerm 润滑系统

    Forced Lubrication 压力润滑

    Forced Lubrication 压力润滑

    Fuel Tank 油箱容量(L)

    3.6

    9

    Oil Capacity 机油容量(L)

    0.6

    0.6

    Noise Level (Db/7m)噪音等级(7米内)

    66

    66

    Packing Dimensions(mm) 包装尺寸

    710X*440X430

    710X*440X430

    Gross Weight(kg) 毛重

    71

    90


    Producing line

    DC 19 - 26V Single Phase Generator , Welding Generator Set 8.0HP Max Output


    FAQ


    1. Are you trading company or manufacturer ?
    Re: We are manufacturer in Fuan city, Fujian province, China.

    2. What's your warranty period ?
    Re: The goods are under warranty for a period 12 months or 1000 hours.
    (except the damageable caused by incorrect man-made operation)

    3. What's your MOQ?
    Re: 1 piece.

    4. What's your payment term?
    Re: TT: 30% deposit and 70% balance within 20 days since shippemnt date.
    LC: 100% irrevocable LC.

    5. How to visit your factory?
    Re: 2 hours from ChangLe, Fuzhou airport by car.
    40 minutes from Fuan Train Station by car.
