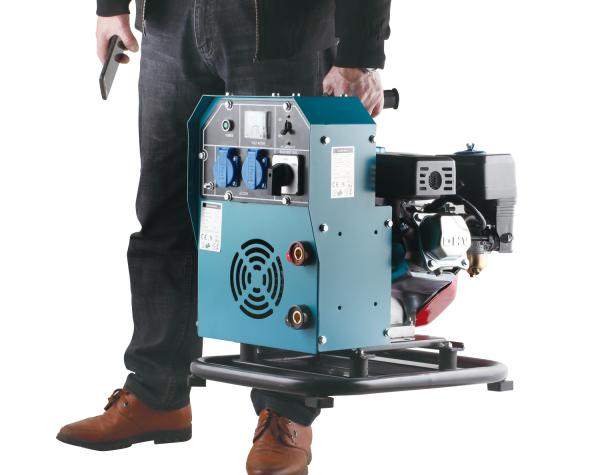

160A Petrol Engine 8.0HP PMG Welding Portable Welder Generator
4.0MM Welding Rod
Technical Date
Model 型号 | GFA08AW-130AG | GFA08AW-160AG | Rated Welding Current(A)额定电焊电流 | 130 | 160 | Welding voltage(DC)(v)电焊电压 | 19-26 | 22-28 | Welding current range(A)电焊电流范围 | 40-130A | 50-160A | Applicable ElectrodeΦ(mm)适用焊条 | 1.5-3.2 | 2.5-4.0 | Duty Cycle电焊持续率 | 60% | 60% | Phase相数 | Single Phase 单相 | Single Phase 单相 | AC Frequency(Hz) 频率 | 3600/50 or 60Hz | 3600/60Hz | Rated Output (KW) 额定输出功率(KW) | 1.0KW | - | Rated Output Voltage(V)额定电压 | 220-240 | 220-240 | Power Factor功率因素 | 1 | 1 | Engine Model发动机型号 | GF170FB | GF170FB | Max. Outpput (HP)发动机最大功率 | 8.0 | 8.0 | Displacement (cc) 排量(cc)) | 223 | 223 | Type 发动机类型 | Single-cylinder,4-stroke,Air cooled,OHV 单缸,四冲程,风冷引擎,OHV | Compression ratio 压缩比 | 8.3:1 | 8.3:1 | Starting System启动方式 | Rical/Electric 手动/电动 | Lubrication Systerm 润滑系统 | Forced Lubrication 压力润滑 | Forced Lubrication 压力润滑 | Fuel Tank 油箱容量(L) | 3.6 | 3.6 | Oil Capacity 机油容量(L) | 0.6 | 0.6 | Noise Level (Db/7m)噪音等级(7米内) | 66 | 66 | Packing Dimensions(mm) 包装尺寸(mm) | 480X400X500 | 480X400X500 | Gross Weight(kg) | 33 | 32 |
|
1, Use these professional protective equipment when operating.
- Face shield
- Dedicated heat resistant gloves
- Protective clothing and shoes
2, 2.5 and 4.0MM Welding rod.
3, Welder current 130A/160A
4, Engine 1 years warranty.
5, Do not use machine in area where dust pollution, flammables or
explosives are present.
6, Delivery by ship/train/courier(ship is the cheapest way,but
request you have import license or someone who can help you
declear)
Advantage
1. 100% Standard power output
2. Easy to operate and move.
3. 100% copper wire,and cold-rolled silicon steel
Package
We have different original packages for selling in different
counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged
and safely reach your hands.
Delivery
Generally, it will take 3 to 7 working days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
We will recommend the most suitable shipping method for you.
