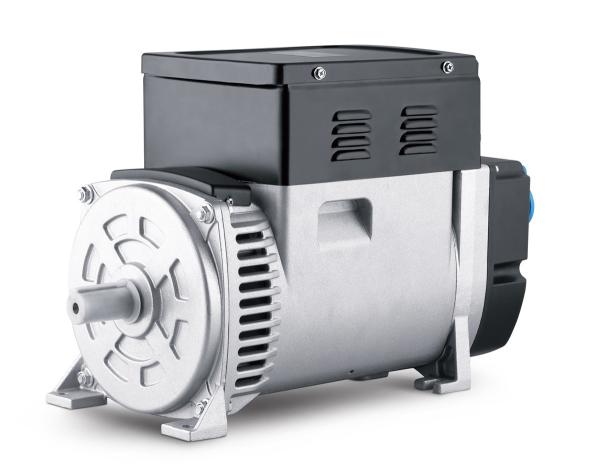

7KW Pull-belt Power Brush Brushless Alternator High Output
Alternator AC Dynamo
1. Cast aluminum shell
2. Easy to install with many kinds of machine,such as
gasoline/diesel engine
3. 100% copper wire,and cold-rolled silicon steel
Single-Phase with Eur socket.(socket as request)
|
Double Bearing type with Socket |
Taper shaft type Three phase with control panel |
Single/Three-Phase with Lead output
|
TECHNICAL DATE |
Type | Rated Power (KVA) | Max Power (KVA) | Type | Rated Power (KVA) | Max Power (KVA) |
GFA10-2.0 B3 | 50Hz-3000r.p.m | 2.0 | 2.3 | GFA11-5.0 B3 | 50Hz-3000r.p.m | 5.0 | 5.5 |
60Hz-3600r.p.m | 2.5 | 2.8 | 60Hz-3600r.p.m | 5.5 | 6.0 |
GFA10-2.5 B3 | 50Hz-3000r.p.m | 2.5 | 2.8 | GFA11-6.0 B3 | 50Hz-3000r.p.m | 6.0 | 6.5 |
60Hz-3600r.p.m | 3.0 | 3.3 | 60Hz-3600r.p.m | 6.5 | 7.0 |
GFA10-3.0 B3 | 50Hz-3000r.p.m | 3.0 | 3.3 | GFA11-7.0 B3 | 50Hz-3000r.p.m | 7.0 | 7.5 |
60Hz-3600r.p.m | 3.5 | 4.0 | 60Hz-3600r.p.m | 7.5 | 8.0 |
GFA10-4.0 B3 | 50Hz-3000r.p.m | 4.0 | 4.5 | GFA11-8.0 B3 | 50Hz-3000r.p.m | 8.0 | 8.5 |
60Hz-3600r.p.m | 5.0 | 5.5 | 60Hz-3600r.p.m | 8.5 | 9.0 |
Note:The data for your information only ,and changes based on
practicality |
Insulation Class:CL.F(△T≦130K)
Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)
Rated
Voltage:110,115,120,220,230,240,110/220,115/230,120/240,220/380,230/400
DC Output:12V/8.3A(Optional)
Excitation Type:Brush&Brushless
Remarks:Dimensions marked above are according to Honda engine
GX160/ GX390
Package.
We have different original packages for selling in different
counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged
and safely reach your hands.
Delivery.
Generally, it will take 15 to 20 working days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
We will recommend the most suitable shipping method for you.
