Solenoid Oil Pump Heavy-Duty 4-Stroke Single Cylinder Silent Diesel
Generator Auto Pump
Silent Diesel Generator Set
Single cylinder, 4-stroke, air-cooled, direct injection, Diesel
engine.

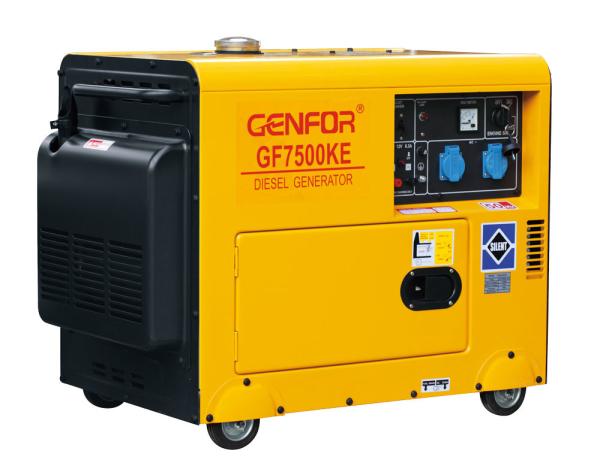

Model: GF7500KE
* Automatic air bleeding mechanism
* AC Voltmeter
* DC Output*
AC Circuit Breakers
* DC Fuse Protection
* Full-power Switch on Dual Voltage
* Extra Large Fuel Tank with FuelGauge
* Large Capacity Silent Muffler
* Low Oil Shut Down
* wheel Kit
* Electric Starter*Battery
Optional Kits
* Remote start function
* ATS
Package.
We have different original packages for selling in different
counties.
we also can custom the packages as you want..
We have strict packaging to ensure that the goods are not damaged
and safely reach your hands.
Delivery.
Generally, it will take 3 to 7 working days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
We will recommend the most suitable shipping method for you.
Model | GF3500KE(ATS) | GF5500KE(ATS) | GF6500KE(ATS) | GF7500KE(ATS) | GF12000KE(ATS) |
type 类型 | Revolving Magnetic Field,single phase/three phase |
AC Frequency(Hz)频率 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Rated Power(KW)额定功率 | 2.7 | 3.0 | 4.6 | 5.0 | 5.5 | 6.0 | 6.0 | 7.0 | 10 | 11 |
Max.Power(KW)最大功率 | 3.0 | 3.3 | 5.0 | 5.5 | 6.0 | 6.5 | 6.5 | 7.5 | 11 | 12 |
AC Output volatge(V)电压 | 110;120;110/220;120/240,220;230,240;115/230;220/380;230/400 |
DC Output(V/A)直流输出 | 12/8.3 |
Engine Model引擎型号 | GF178FAE | GF186FAE | GF188FE | GF192FE | GF292FE |
type类型 | Single cylinder,air-cooled ,4-stroke 单缸,风冷四冲程 | Double-cylinder,Force air-cooled, 4stroke,OHV 双缸,风冷,四冲程,直喷式引擎 |
Starting System启动系统 | Electric 电启动 |
Fuel Tank Capacity(L)油箱容量 | 15 | 15 | 15 | 15 | 25 |
Packing Dimensions(mm) | 935x535x715 | 935x535x715 | 935x535x715 | 940x540x740 | 1110X710X985 |
Net Weight(kgs/lbs) | 135/297 | 165/363 | 170/373 | 175/385 | 330/733 |
Per 20GP CNT | 72 | 72 | 72 | 72 | 32 |
per 40GP CNT | 144 | 144 | 144 | 144 | 64 |
1. 100% Standard power output
2. Easy to operate and move.Electric start and Hand start for
Choice.
3. 100% copper wire,and cold-rolled silicon steel
PRODUCING DEPARTMENT
Insulation Class:CL.F(△T≦130K)
Power Factor:CosΦ=1(Single-phase)
Rated Voltage: 110,115,120,220,230,240,110/220,115/230,120/240V
DC Output:12V/8.3A(Optional)
Excitation Type:Brush&Brushless
Genfor on power generator products and service in China.
Being in the power generation field for more than 10 years, we have
very good connection with G-Drive Engines and brand alternators.
We are not only assembling the generator set, but also giving you
the best solution to meet your special needs on projects and your
clients.
We supply Generator Sets from 500W to 12KW. Welder Generator 120A
to 300A
